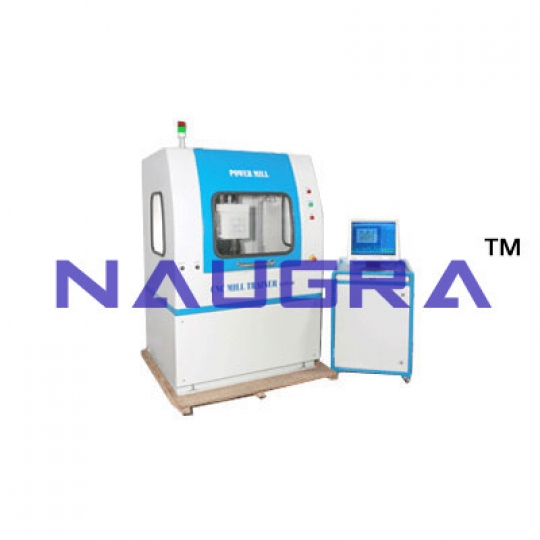

CNC Mill Trainer Machine.
Now it is possible to provide hands on experience to students to most
of the machine tool industry norms. Rapid travel of 10,000 mm/min and
Fanuc / Siemens emulated keyboard imparts necessary industrial grade
machine experience to students.
Complete independence from computer (No I/O card used) prevents this machine from any issues related with electrical supply (Noise and Spikes). Down time of PLC based machines is 90% less as compared to other computer (I/O Card) based machines.
Also, machines to be operated
remotely. Hence problem detection and eventual solution can be attained
within minutes.
Specifications:
Axis Motor and Drive | Servo Motor with Servo Drives |
X Axis | 225 mm |
Y Axis | 150mm |
Z Axis | 150 mm |
4th Axis Provision (Optional) | Not Provided |
Spindle to column distance | 270 mm |
Feed Rate | 0 to 10,000 mm/min |
Rapid Travel | 10,000 mm/min |
Table Size | 560 x 220 mm |
T Slot | 3 x 10 x 50 |
Load on Table | 120 Kg |
Spindle Motor Capacity | 1.5 HP |
Spindle Nose Taper | ISO 30 / BT 30 |
Spindle RPM | 100 to 3000 RPM |
Controller | CutViewer-United Kingdom |
Control System | PLC Based Control System |
Operating Software | CutViewer - United Kingdom |
Positioning | 0.010 mm |
Repeatability | +- 0.005 mm |
Resolution | 0.001 mm |
4th Axis Resolution (Optional) | Not Provided |
Tool Changer | Automatic / Manual Quick Tool Change |
No. of Tools | 8 |
Maximum Tool Length | 40 mm |
Maximum Tool Dia. | 16 mm |
Type of ATC | Umbrella Type |
Actuation | Hydraulic (Compressor not required) |
Interpolation | Linear / Circular / Parabolic |
Real Time tool path simulation | Provided |
Dimension in mm | 1150 x 1000 x 1750 mm |
