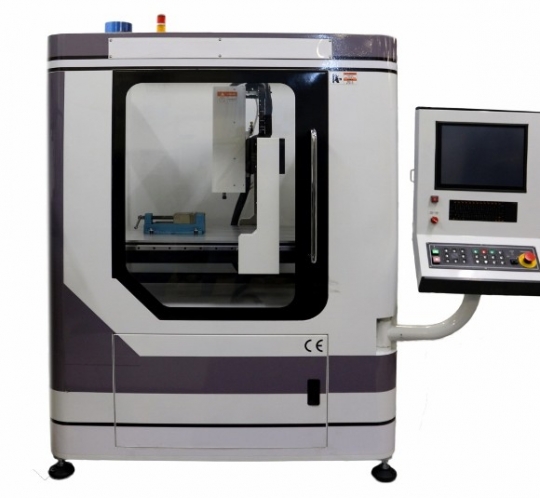

CNC Semi Production Mill.
This machine which is specifically designed for educational
institutes, offers hands on experience of industrial machines with
safety features of trainer machines.
Available Controllers:
Siemens: 808D / 808 Advanced / 828D
Fanuc: 0i Mate TD
Key features of this industrial controller based machine are as follows:
Rapid of 5,000 mm/min to 20,000 mm/min
Position Accuracy: 5 micron / 0.005 mm
Repeatability: 10 micron / 0.010 mm
Feed Rate: 0 – 10,000 mm/min (Continuous Variable)
Data entry through Siemens / Fanuc MOPs
Control Panel integrated with machine
Hardware as well as software over travel limits
Telescopic Metallic covers for Guideways
2 years warranty
3 Phase and Phase Reversal Protection
Pneumatic Vice
Provision for 4th Axis
Axis Motor and Drive | Servo Motor with Servo Drives |
X Axis | 300 mm |
Y Axis | 225 mm |
Z Axis | 250 mm |
Spindle to column distance | 270 mm |
Feed Rate | 0 to 10,000 mm/min |
Rapid Travel | 10,000 mm/min |
Guideways | LM Guideways |
Table Size | 560 x 220 mm |
T Slot | 3 x 10 x 50 |
Load on Table | 120 Kg |
Spindle Motor Capacity | 3 HP |
Spindle Nose Taper | ISO 30 / BT 30 |
Spindle RPM | 100 to 4000 RPM |
Controller | Siemens / Fanuc / Mitsubishi |
Positioning | 0.010 mm |
Repeatability | +- 0.005 mm |
Resolution | 0.001 mm |
Tool Changer | Automatic |
No. of Tools | 8 / 12 |
Maximum Tool Length / Dia | 40 mm / 16mm |
Vice Type | Pneumatic/ Manual |
Dimension in mm | 1300 x 1100 x 1900 mm |
