CNC Lathe Trainer

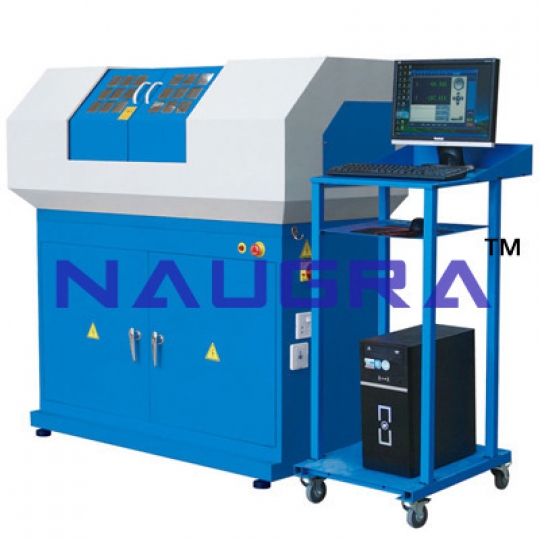

CNC Lathe Trainer - Stepper

Product Code CNC-LT-0004

Industrial-grade Servo motor drives
Fanuc / Siemens-compatible controller
Complete CAD-CAM software included
Onsite installation & faculty training
Bulk tender supply & worldwide export

Get Bulk Tender Quote

Send Enquiry

Tell A Friend Print Datasheet Save

Need help with bulk procurement?

Talk to our tender team — BOQ & technical bid documents in 24 hours.

+91-9896600003 · sales@naugracnc.com

CNC Lathe Trainer - Stepper

CLT 150 is based on stepper motors and stepper drives. This is our highest selling model in Indian subcontinent. Rigid design and PLC based technology gives this machine a technological advantage over its competitor.

Complete independence from computer (No I/O card used) prevents this machine from any issues related with electrical supply (Noise and Spikes). Down time of PLC based machines is 90% less as compared to other computer (I/O Card) based machines.

Also, machines to be operated remotely. Hence problem detection and eventual solution can be attained within minutes.

- Specifications:

Bed Type	Flat / 45 Degrees Slant
Keyboard Type	Fanuc Emulated / Manual
Chuck Size	150 mm (Dia)
Chuck Type	Hydraulic
Maximum Turning Diameter	80 mm
Maximum Turning Length	250 mm
Center Height	150 mm
Swing over Cross Slide	125 mm
Swing Over Bed	300 mm
Distance between Centre	320 mm
Controller	CutViewer-United Kingdom
Control System	PLC Based Control System
Operating Software	CutViewer - United Kingdom
Positioning	0.010 mm
Repeatability	+- 0.015 mm
Resolution	0.010 mm
Spindle Motor	AC Servo
Spindle Motor Capacity	3.7 KW / 5 HP
Spindle RPM	100 to 4000 RPM with VFD
Spindle Nose Taper	A 2-3 / MT 3 / A 2-5
Hole Through Spindle	20 mm
Axis Motor and Drive	Stepper Motor with Stepper Drives imported from Singapore
X Axis Travel	100 mm
Z Axis Travel	300 mm
Ball Screw X / Z	Ø25 x 5 - C3 Class
Feed Rate	0 to 1,200 mm/min
Rapid Travel	1,200 mm/min
Turret Type	Automatic
Number of Stations	4 / 8
Tailstock Base Stroke	170 mm
Tailstock Actuation	Hydraulic/ Manual
Lubrication	Automatic
Coolant	Automatic
FMS Compatibility	Provided
Dimension in mm	1520 x 800 x 1200 mm
Power Supply	230V, Single Phase

Every Naugra CNC CNC Lathe Trainer - Stepper is shipped with the following items, factory-tested and ready for installation:

Complete CNC Lathe Trainer - Stepper, factory tested

Servo motor drives with industrial-grade controllers

Fanuc / Siemens-compatible CNC control system

CAD-CAM software (BobCAD / CutViewer / NC Guide)

Onsite installation & commissioning by Naugra engineers

Faculty & lab-technician training programme

Syllabus-aligned lab manual and exercise sheets

Standard tooling kit and accessories

1 year onsite warranty

BOQ & Technical Bid Documents

Complete bill-of-quantities, technical specification sheets and OEM authorisation letters delivered within 24 hours of your tender enquiry.

Direct from Manufacturer

No middlemen, no markup. Direct factory pricing for engineering colleges, ITIs, polytechnics and government skill-development centres.

30-45 Day Delivery

Bulk-order delivery within 30-45 days for India and 45-90 days for export shipments — full packing, shipping and clearance handled.

Installation & Training Included

Every order includes onsite installation, commissioning, faculty training and lab-staff handover — no extra cost.

Request Tender Documents

Need a Bulk Tender Quote for CNC Lathe Trainer - Stepper?

Government & institutional buyers — get fastest response on bulk orders for CNC Lab Machines.

Request Tender Quote

Buy CNC Lathe Trainer - Stepper from India's Trusted CNC Trainer Manufacturers

The CNC Lathe Trainer - Stepper is part of Naugra CNC's complete range of educational CNC trainer equipment, manufactured in our 25,000+ sq ft facility in Ambala Cantt, Haryana. As leading CNC Lab Machine Suppliers from India, we serve engineering colleges, polytechnics, ITIs and skill-development institutions across India and 30+ countries with bulk-tender-ready products.

This machine is ideal for bulk tender supply to AICTE-approved engineering colleges, NCVT-registered ITIs, polytechnic colleges, and government skill-development centres. We provide complete tender support including BOQ preparation, technical specification documents, OEM authorisation letters, and EMD documentation — all delivered within 24 hours of enquiry. Every machine ships with onsite installation, faculty training, syllabus-aligned lab manuals and a 1 year onsite warranty.
