Model

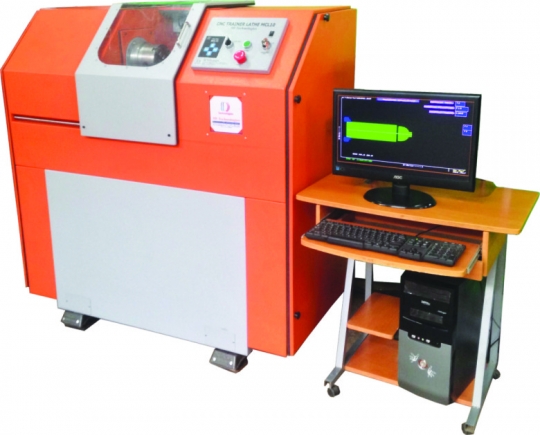

Trainer CNC Lathe.

CNC Controller

Window Based Software

CNC Software

 Mach3

Axis Motor Drive

AC Servo (1.3 Nm 1.3 Nm)

Spindle Motor

2 HP with VFD/1.7Kw

Max Depth of cut

2 mm possible.

Spindle Motor Speed

100 to 3000 rpm

Lubrication System

Automatic (Motorized)

Swing Over Bed

250 mm

Swing Over Carriage

100 mm

Centre Height

200 mm

Stabilizer

2 KVA

Max. Machining Diameter

60 mm

Max Turning Length

150 mm

Max. Longitudinal Travel

300 mm

Spindle inside Taper

MT-3

Spindle Type

Regular

Spindle Bore

Dia 38 mm

Standard Cutting Tool Size

20 X 20

Input System

Metric / Inch

Chuck Size

Dia 110 mm

Rapid Feed Rate Axis

1000 mm/Min.

Max. Rapid Feed

4000 mm/Min.

Accuracy

0.005u

Ball Screw

HIWIN.

Horizontal Tool Changer

4 Station
