Capacity Data

Description

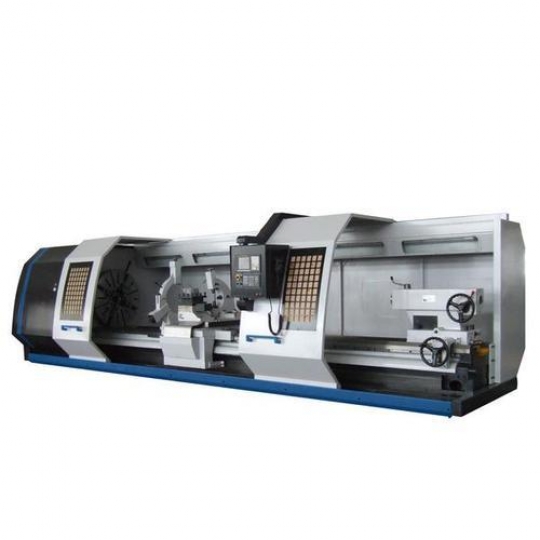

Heavy Duty CNC Lathe Machine

Full Machine Size (LXWXH)

2000 X 875 X 1800

Machine Centre Height

250 mm

Admin between centre

400 mm

Spindle HP with VFD

7.5 HP

AC Servo Drive & Motor

2.4 Nm

Spindle Bore

80 mm

Spindle Speed

10 to 2000 RPM variable

Spindle Nose

A26

Repeatability

0.05µ

Lubrication

Automatic

Ball Screw (Hiwin)

Ø 40

CNC Controller

Mach3 / Siemens*

Coolant

Automatic

4 Station Square Tool Turret

200 Optional

Hydraulic Chuck

Ø 300 Optional

Max User

Heavy Full Production
