Model

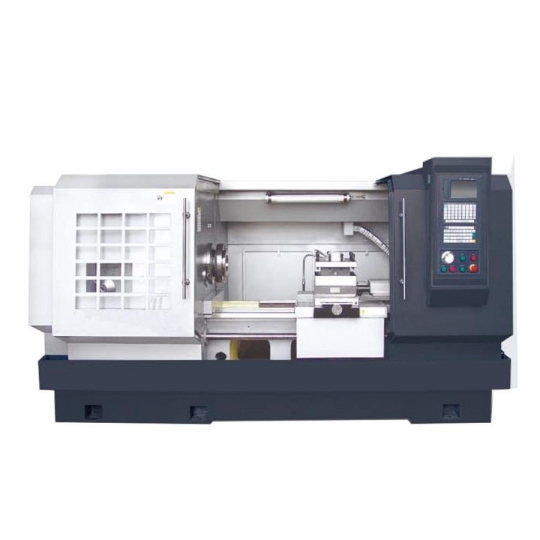

Medium Duty CNC Lathe Machine

CNC Controller

Window Based Software

CNC Software

Mach3

Axis Motor & Drive

AC Servo (1.3 & 2.4 Nm)

Spindle Motor

5 HP with VFD / 3.7Kw

Max Depth of cut

5 mm possible

Spindle Motor Speed

100 to 2000 rpm

Lubrication System

Automatic (Motorized)

Swing Over Bed

350 mm

Swing Over Carraige

150 mm

Centre Height

200 mm

Stabilizer

3 KVA

Max Machining Diameter

200 mm

Max Turning Length

450 mm

Max Longitudinal Travel

600 mm

Spindle Inside Taper

MT 3

Spindle Type

A25

Spindle Bore

Dia 38 mm

Standard Cutting Tool Size

25 X 25

Input System

Metric / Inch

Hydraulic Chuck Size

Dia 200 mm

Rapid Feed Rate Axis

1000 mm/Min.

Max. Rapid Feed

4000 mm/Min.

Accuracy

± 0.025μ

Ball Screw

HIWIN.

Horizontal Tool Changer

4 Station
