Capacity Data

Description

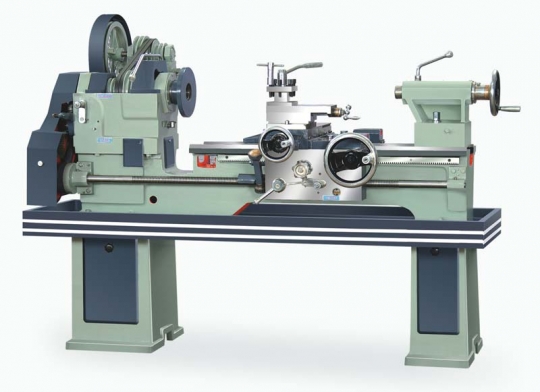

Light Duty Lathe Machine

Full Machine Size (LXWXH)

1200 X 600 X 500

Machine Centre Height

8 inch

Max. Turning Dia

100 mm

Spindle HP with VFD

3 HP

AC Servo Drive & Motor

1.3 Nm

Spindle Bore

38 mm

Spindle Speed

Max. 3000

Spindle Nose

A25

Repeatability

0.04µ

Lubrication

Automatic

Ball Screw (Hiwin)

Ø 25

CNC Controller

Mach3 / Siemens*

Coolant

Automatic

4 Station Square Tool Turret

130 Optional

Hydraulic Chuck

Ø 165 Optional

Max User

College Trainer / Toolroom Production
